Commercial Refrigeration Panels — Adelaide & Australia-Wide
Cool Room Masters supplies commercial refrigeration panels to food businesses, builders and cold-chain operators across Australia. Our EPS insulated panels are designed for commercial cool rooms, chillers, cold storage rooms and food-grade freezer builds. With a cut-to-length service, Z-lock interlocking system and Adelaide-based stock, we make it easier to build or upgrade refrigeration panels for your business — faster and at a better price per m².
Our Commercial Refrigeration Panel Range
EPS insulated panels engineered for cool rooms, chillers, cold storage facilities and food-safe builds across Australia.

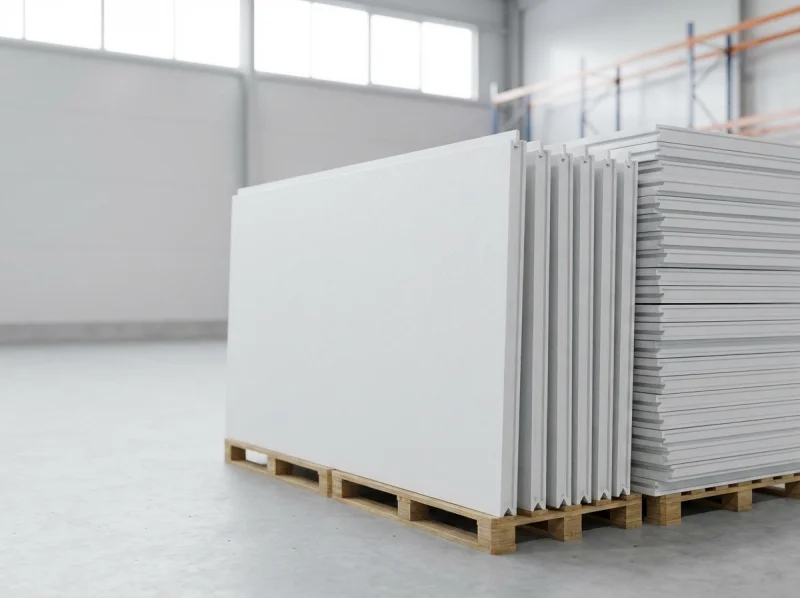

EPS Wall Panels (Z-lock)
Lightweight, value-led performance for most commercial cool rooms and chillers. Interlocking Z-lock joints ensure airtight, fast installs with minimal thermal bridging.
Shop Wall Panels →

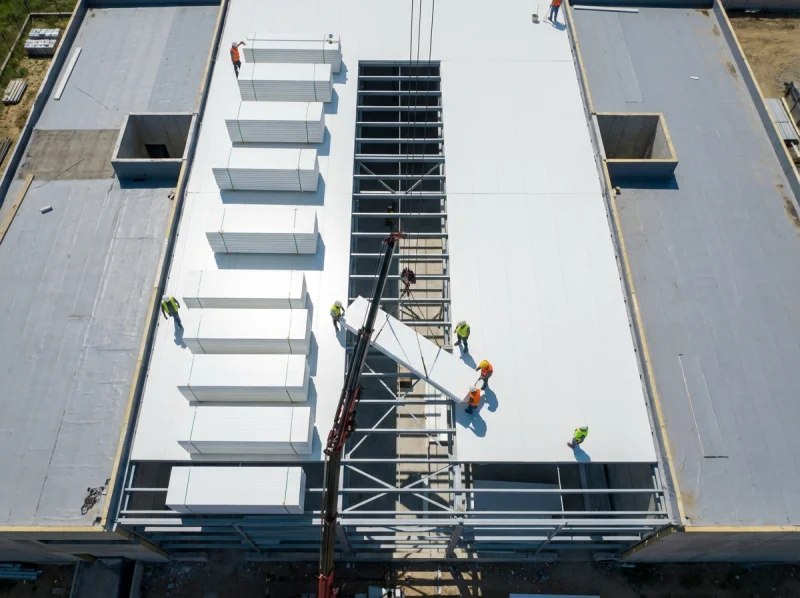

EPS Roof Panels
1000mm coverage width with custom lengths available. Fewer joints, faster installation and excellent overhead thermal efficiency for commercial refrigeration builds.
See Roof Panels →

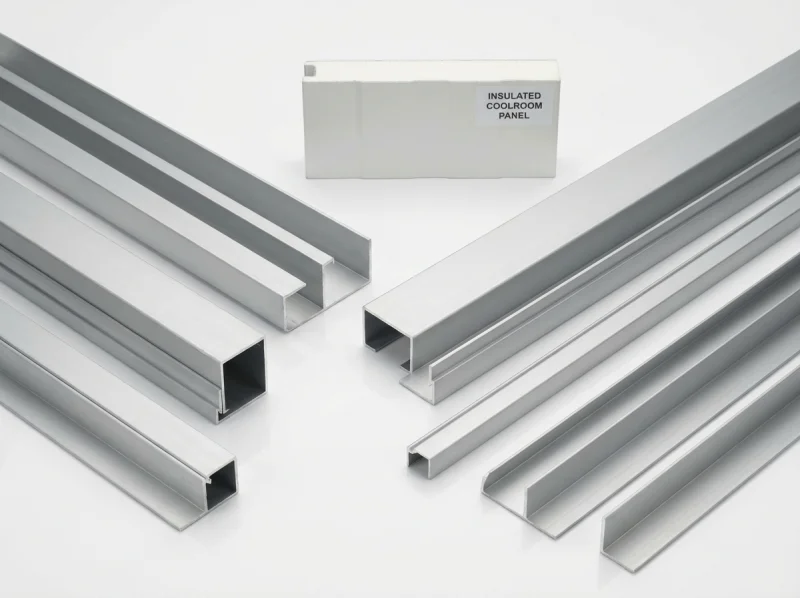

Channels & Trims
Aluminium C and L channels, corner trims and accessories sized precisely for 35mm, 50mm and 75mm panel thickness. Clean finishes for hygienic commercial builds.
Shop Accessories →

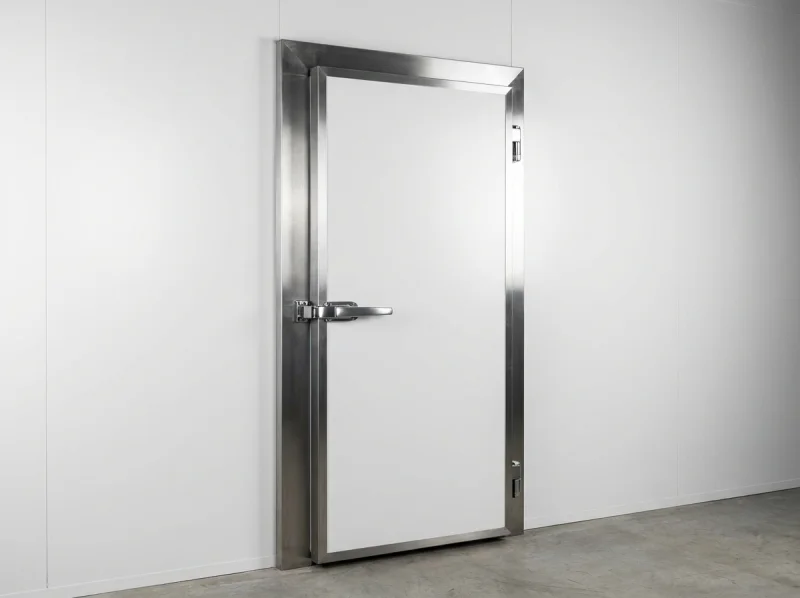

Door Packages
Complete coolroom door packages matched to your panel spec. Proper seal integrity is critical for consistent temperatures and lower energy costs in commercial refrigeration.
View Door Package →

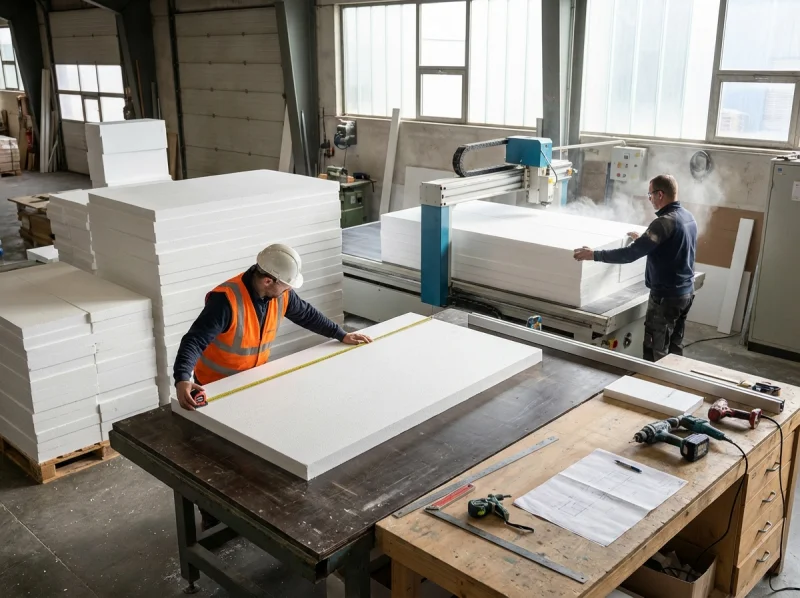

Customize Size
Panels precision-cut to your exact room dimensions. Specify length, width and thickness — we cut and deliver ready to install, minimising on-site waste and labour time.
Request Custom Size →
Online Cost Calculator
Estimate your coolroom panel project cost instantly. Enter your room dimensions and panel thickness to get a quick price guide before contacting our team for a firm quote.
Use Calculator →How to Choose Refrigeration Panel Thickness
Right-sizing thickness reduces compressor load and lifetime running costs. Use this as a starting point — our team will validate for your room size, ambient heat and duty cycle.
| Application | Target Temp | Recommended Thickness | Panel Type | Notes |
|---|---|---|---|---|
| Café / Deli Chiller | 0–5 °C | 50mm EPS | Z-lock Wall Panel | Best value for low-traffic cool rooms |
| Commercial Cool Room | 2–8 °C | 50–75mm EPS | Z-lock Wall + Roof Panel | Go thicker for hot ambient or high door cycles |
| Butcher / Grocer | 0–4 °C | 75mm EPS | Z-lock Wall Panel | Hygienic steel skins suit food-contact environments |
| Cold Storage Room | −5 to 0 °C | 75–100mm EPS | Z-lock Wall + Roof | Thicker panels reduce thermal cycling |
| Freezer Room | ≤ −18 °C | 100–125mm PU/PIR | PIR Panel | Reduces icing risk and compressor runtime |
| Pharmaceutical / Pharma | 2–8 °C | 75mm EPS / PIR | Clean Room Panel | Non-porous skins, sealed junctions required |
Need help speccing thickness? Contact our team — we'll size panels for your duty cycle, ambient temperature and room footprint.
Why Australian Businesses Choose Cool Room Masters
Trusted by builders, butchers, grocers and cold-chain operators across South Australia, Victoria and New South Wales.
Energy-Efficient Builds
Correctly sized panel thickness reduces compressor load and cuts long-term electricity costs for your commercial refrigeration system.
Hygienic & Food-Safe
Non-porous steel skins and sealed Z-lock junctions meet food-safe requirements for butchers, grocers, bakeries and pharma cold storage.
Cut-to-Length Supply
We cut panels to your exact spec — minimise on-site waste, speed installation and reduce labour costs on commercial refrigeration projects.
Transparent Pricing
Live product pages with specs and pricing online. No hidden fees, no surprises at checkout — know what you're paying before you order.
Fast Nationwide Delivery
Adelaide-stocked inventory with Australia-wide delivery. We supply commercial refrigeration panels to SA, VIC, NSW and all major metros.
Local Technical Support
Adelaide-based team ready to help you spec panel thickness, trims and accessories for your commercial refrigeration project.
EPS vs PU vs PIR — Which Core for Your Commercial Build?
The right foam core depends on your target temperature, compliance requirements and budget. Here's a clear comparison.
| Feature | EPS (Cool Room Masters) | PU / PIR (Premium) |
|---|---|---|
| Thermal performance (per mm) | Very good — excellent value for cool rooms | Higher R-value per mm (ideal for freezers) |
| Best temperature range | 0 °C to −10 °C (chillers & cool rooms) | −18 °C and below (freezer rooms) |
| Food safety | ✓ Non-porous skins, food-grade | ✓ Non-porous skins, food-grade |
| Fire behaviour | Use correct detailing and skins | PIR offers improved fire performance |
| Cost | ✓ Best $/m² — most affordable option | Mid to premium pricing |
| Availability | ✓ Adelaide stock, cut-to-length | Longer lead times, order basis |
| Best for | Chillers, cool rooms, cold storage, food retail | Freezer rooms, compliance-critical sites |
Not sure which core suits your project? Ask our team — we'll recommend the right panel for your temperature range and compliance needs.

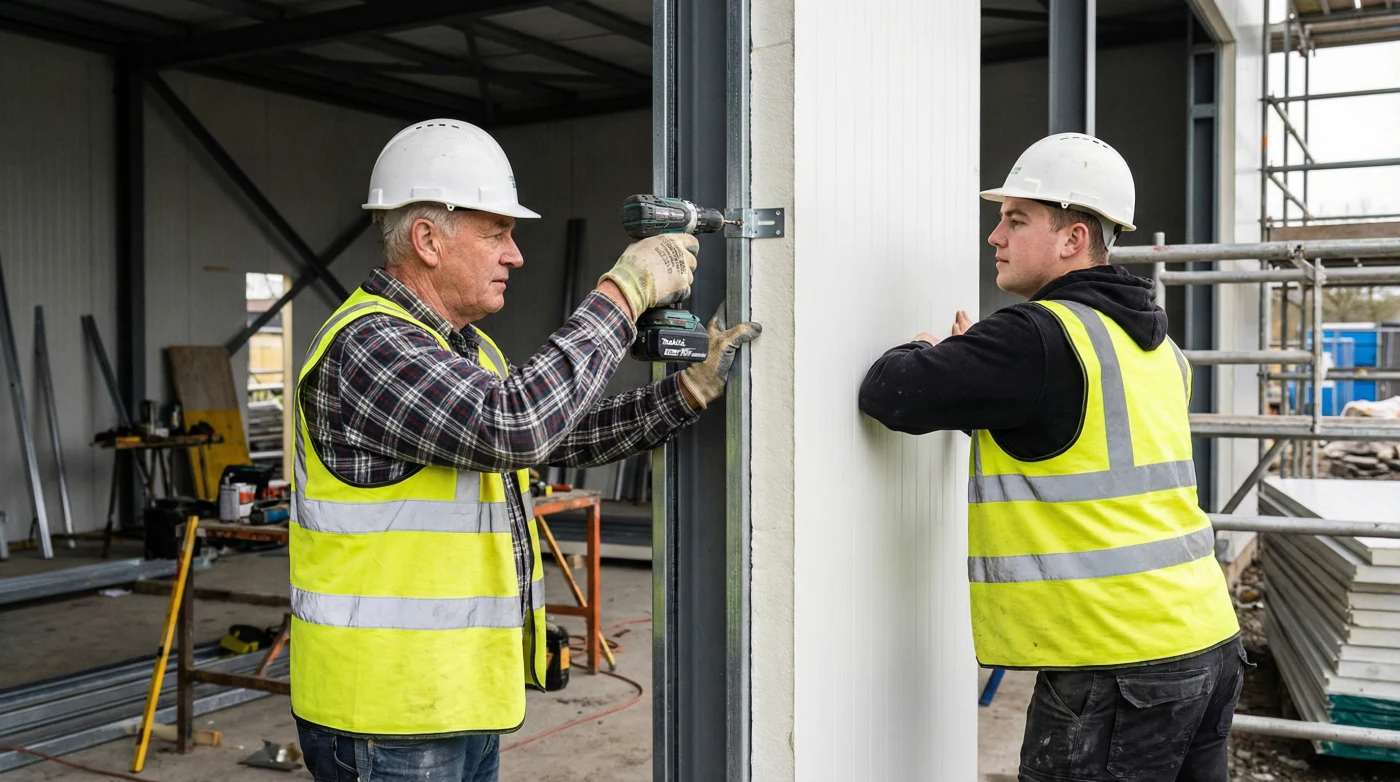

Installation Best Practices
Follow these steps for a fast, airtight commercial refrigeration panel install that performs for years.
Prepare the Substrate
Level the floor and walls. Install vapour barriers where required by your engineer or building code. A flat substrate prevents thermal gaps and panel stress.
Engage Z-Lock Joints Fully
Ensure Z-lock profiles engage completely along the full length of each panel join. Partial engagement creates air leaks and thermal bridges — the biggest cause of cool room underperformance.
Seal All Penetrations Immediately
Use food-safe silicone or PU sealant at all wall/floor/ceiling junctions, pipe penetrations and door frame perimeters. Seal as you go — don't leave it to the end.
Fit Channels & Trims
Install aluminium C and L channels at all internal corners and exposed panel edges. Channels provide structural support, a hygienic finish and help maintain seal integrity over time.
Commission & Record Baseline
Once complete, run the refrigeration unit and record baseline temperatures and energy consumption. Use this as your benchmark for ongoing performance monitoring and maintenance planning.
More resources: Joining coolroom panels · Fixings & screws guide · Cutting coolroom panels
FAQ: Commercial Refrigeration Panels
Common questions from food businesses, builders and cold-chain operators across Australia.
What are commercial refrigeration panels made of?
Commercial refrigeration panels consist of an insulating foam core — typically EPS (expanded polystyrene), PIR or PU — bonded between two steel skins. The foam core provides thermal resistance (R-value) while the steel skins offer structural rigidity, a hygienic surface and weather resistance. Cool Room Masters supplies EPS core panels with Z-lock interlocking joints for fast, airtight cool room construction.
What is the best panel thickness for a commercial cool room?
For most commercial cool rooms operating at 0–8 °C, 50mm to 75mm EPS panels provide the best balance of thermal efficiency and cost. For high-traffic doors, hot ambient climates (like South Australia summers) or freezer rooms at −18 °C or below, increase to 100–125mm PIR. Our team can validate your thickness spec based on your room footprint and duty cycle.
Are Cool Room Masters panels HACCP-compliant and food-safe?
Yes. Our EPS commercial refrigeration panels feature non-porous steel skins and sealed Z-lock joints that prevent moisture ingress and bacteria build-up — suitable for butchers, grocers, bakeries, food manufacturing and pharmaceutical cold storage. We recommend food-safe silicone sealant at all junctions for full hygiene compliance.
Can I get commercial refrigeration panels cut to custom lengths?
Yes — cut-to-length is a standard service. Provide your room dimensions and we'll cut panels to spec, minimising on-site waste and speeding your installation. Contact us with your measurements for a fast quote including cut panels and delivery.
Do you deliver commercial refrigeration panels across Australia?
Yes. We stock panels at our Adelaide warehouse and arrange delivery nationwide — including South Australia, Victoria, New South Wales, Queensland and Western Australia. We also offer installation support across major metro areas. Contact us for a delivery quote to your location.
How much do commercial refrigeration panels cost in Australia?
EPS coolroom panels typically range from $40–$75 per m² depending on thickness (35mm, 50mm, 75mm), finish and quantity. For a firm delivered price including cut-to-length service, visit our online shop or contact our team directly for a project quote.
Can I upgrade or repair an existing commercial cool room?
In most cases yes. We can supply replacement panels in matching thickness, compatible aluminium trims and upgraded door seals to improve the thermal performance and hygiene compliance of your existing commercial refrigeration setup. Contact us with photos of the damaged sections for a repair quote.
Ready to Spec Your Commercial Refrigeration Panels?
Tell us your room size, target temperature and location. We'll recommend core, thickness and trims — and quote delivery to your site.
Get a Fast Quote Browse All Panels
