Cold Storage Panel Series
Efective width: 1120mm
Thickness: 30-250mm (30/50/60/75/100/120/150/200/220/250)
Length: Produce according to the size required by the user.
Core material: PIR 40-50kg/m3
The core material is composed of two layers of metal plates and an organic diisocyanate or polyisocyanate polymerized with dihydroxy or polyhydroxy compounds. The insulation material is formed in one go on the assembly line using advanced mixed casting continuous foaming technology. Low water absorption, high compressive strength, and excellent thermal insulation efect.

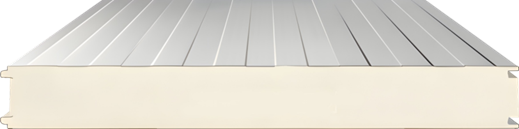

PIR cold storage panel
Applicable industries
Food cold storage, medicine cold storage, lower and fruit and vegetable cold storage, refrigerated truck, quick freezing room and etc.
Feature
Weather-resistant sealant on interfaces enhances brightness and durability.
Polyurethane foam in grooves ensures seam sealing and insulation.
PIR core material is lame-retardant (B2 level), high strength, non absorbent, and blocks heat transfer effciently.

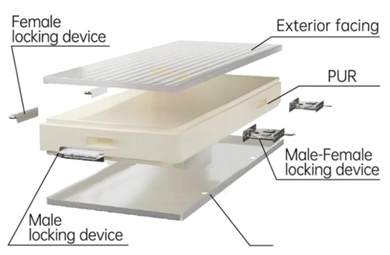

PUR cold storage panel
Applicable industries
Food cold storage, medicine cold storage, lower and fruit and vegetable cold storage, refrigerated truck, quick freezing room and etc.
Technical parameter
Efective width: 1120mm
Length: Produce according to the size required by the user.
Thickness: 30-250mm (30/50/60/75/100/120/150/200/220/250)
Core material: PIR 40-50kg/m3
The core material is composed of two layers of metal plates and an organic diisocyanate or polyisocyanate polymerized with dihydroxy or polyhydroxy compounds. The insulation material is formed in one go on the assembly line using advanced mixed casting continuous foaming technology. Low water absorption, high compressive strength, and excellent thermal insulation efect.
Product features
Ideal for a wide range of cold storage sizes and shapes. Particularly in situations with on site modifications or space limitations.
Offer customizable panel sizes to accommodate personalized installations.
The installation is simpler requiring no complex machinery. Additionally, it demands lower levels of worker skill and allows for easier disassembly and reinstallation.
